I’ve been working on virt86 for a few weeks now, and some of the things I decided to focus on were type safety and making good use of modern C++ features. I did many things to reduce the chances for users to shoot their own foot with the library, such as deleting move and copy constructors and assignment operators from classes to make sure there is only one instance obtained from a known source, deleting or hiding the address operator & so that users cannot get a pointer to objects that are not meant to be deleted and using enum class for type-safe enumerations.

I figured it would be interesting to use enum classes as bitmasks for their type-safety. Unfortunately, you cannot use them as is with bitwise operators, but you can use other C++ features to make them behave like a bitmask type.

A basic version

I knew very little about enum classes at the time, so my first idea was to add methods to the type, assuming they would work like a class, however C++ disallows that. The next solution I thought of was to define operator overloads outside them, which I found out to be allowed by the language. Templates would make that even better.

While researching a bit about using enum class as bitmasks I came across a blog post by Andre Haupt, which the author says is “a reiteration of a blog post by Anthony Williams”, which is exactly the kind of solution I envisioned. The post progressively expands from a motivating example based on unsigned values and regular enums, to a simple set of overloaded operators for an specific type of enumeration, to templates which encompass every enum class type, finishing with SFINAE to ensure only types tagged as bitmasks actually have access to the bitwise operators.

I took his code and modernized it a bit by introducing an alias template for the bitmask enum type trait value and using the alias template std::underlying_type_t, both of which saves a bit of typing overall. Here’s my version:

#define ENABLE_BITMASK_OPERATORS(x)  \
template<>                           \
struct is_bitmask_enum<x> {          \
    static const bool enable = true; \
};

template<typename Enum>
struct is_bitmask_enum {
    static const bool enable = false;
};

template<class Enum>
inline constexpr bool is_bitmask_enum_v = is_bitmask_enum<Enum>::enable;

// ----- Bitwise operators ----------------------------------------------------

template<typename Enum>
typename std::enable_if_t<is_bitmask_enum_v<Enum>, Enum>
operator |(Enum lhs, Enum rhs) {
    using underlying = typename std::underlying_type_t<Enum>;
    return static_cast<Enum> (
        static_cast<underlying>(lhs) |
        static_cast<underlying>(rhs)
    );
}

// ... similarly for & and ^ and ~

// ----- Bitwise assignment operators -----------------------------------------

template<typename Enum>
typename std::enable_if_t<is_bitmask_enum_v<Enum>, Enum>
operator |=(Enum& lhs, Enum rhs) {
    using underlying = typename std::underlying_type_t<Enum>;
    lhs = static_cast<Enum> (
        static_cast<underlying>(lhs) |
        static_cast<underlying>(rhs)
    );
    return lhs;
}

// ... similarly for &= and ^=

This is how the author demonstrated its usage, which is unchanged with my version:

enum Permissions {
    Readable = 0x4, Writable = 0x2, Executable = 0x1
};

Permissions p = Permissions::Readable | Permissions::Writable;
p |= Permissions::Executable;
p &= ~Permissions::Writable;

Limitations

The original version falls short when it comes to another common use case for bitmasks: checking if a bitmask contains a particular bit. You have to do some convoluted and repetitive code to achieve that:

if ((p & Permissions::Executable) == Permissions::Executable) {
    // p has Executable
}

And what if we need to check if the bitmask contains at least one bit of a set of multiple bits?

Permissions rw = Permissions::Readable | Permissions::Writable;
if ((p & rw) ... ??) {
    // p has at least one of Readable, Writable
}

One way to solve this problem is to add a None = 0 entry to the enum. Or you could resort to static_cast:

Permissions rw = Permissions::Readable | Permissions::Writable;
if ((p & rw) != static_cast<Permissions>(0)) {
    // p has at least one of Readable, Writable
}

But this is still too cumbersome. Wouldn’t it be great if you could write those conditions like this?

if (p.AllOf(Permissions::Executable)) {
    // p has Executable
}
if (p.AnyOf(Permissions::Readable | Permissions::Writable)) {
    // p has at least one of Readable, Writable
}

We could even introduce new checks, such as:

if (p.NoneOf(Permissions::Writable)) {
    // p does not have Writable, but may have other bits
}
if (p.AnyExcept(Permissions::Executable)) {
    // p does not have Executable and has at least one of the other bits
}

Unfortunately, we hit the same wall again: enum classes cannot have methods.

Enter the struct

The solution I came up with is to introduce a struct template which wraps an enum class and provides the check methods.

template<typename Enum>
struct BitmaskEnum {
    const Enum value;
    static const Enum none = static_cast<Enum>(0);

    using underlying = typename std::underlying_type_t<Enum>;

    BitmaskEnum(Enum value) : value(value) {
        static_assert(is_bitmask_enum_v<Enum>);
    }

    // ... operations here
};

The basic checks we want to implement are:

  • Any(): true if the bitmask contains any bits
  • None(): true if the bitmask is empty
  • AnyOf(Enum): true if the bitmask contains one or more bits from the given bitmask
  • AllOf(Enum): true if the bitmask contains all bits from the given bitmask
  • NoneOf(Enum): true if the bitmask doesn’t contain any bit from the given bitmask
  • AnyExcept(Enum): true if the bitmask contains any bits excluding those from the given bitmask
  • NoneExcept(Enum): true if the bitmask doesn’t contain any bits excluding those from the given bitmask

It would be very handy to have an EnumBitmask to convert back into the Enum value or a bool, the latter of which is a very common use case with regular enums or even ints to check if the bitmask has any bits set.

The implementations of these operations are left as an exercise to the reader.

Here’s how to use the BitmaskEnum:

Permissions p = Permissions::Readable | Permissions::Writable;
auto pBM = BitmaskEnum(p);
if (pBM.AllOf(Permissions::Executable)) {
    // p has Executable
}
if (pBM.AnyOf(Permissions::Readable | Permissions::Writable)) {
    // p has at least one of Readable, Writable
}
if (pBM.NoneOf(Permissions::Writable)) {
    // p does not have Writable, but may have other bits
}
if (pBM.AnyExcept(Permissions::Executable)) {
    // p does not have Executable and has at least one of the other bits
}

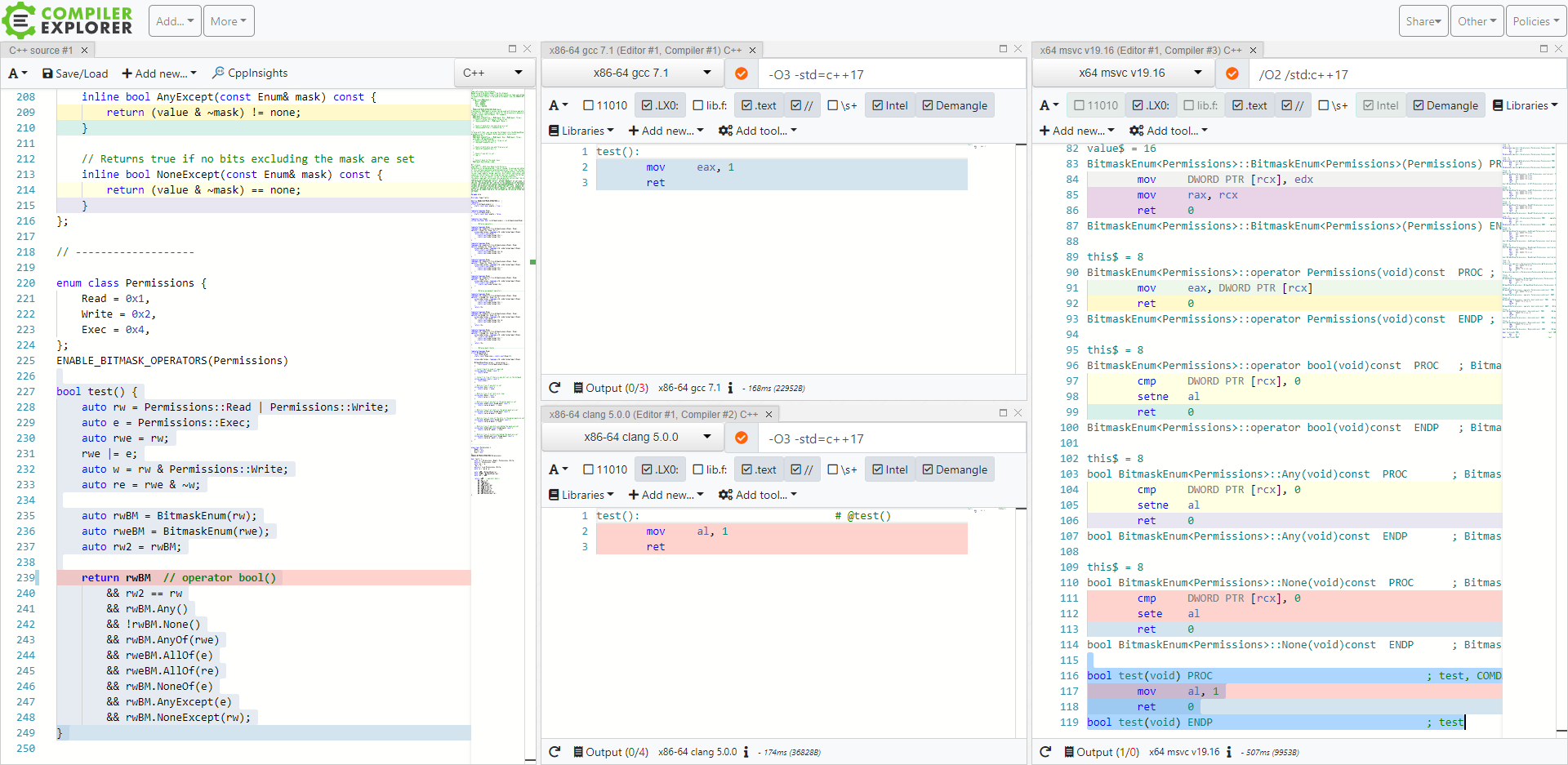

Much nicer and easier to understand. The best part of it? It’s a zero overhead abstraction. No runtime costs at all. Here’s a gist containing a header file taken straight out of virt86, along with a cpp file you can use in Compiler Explorer to check that this is indeed free. (Except MSVC, which still compiles every method in the struct, even though none of them are used, but the test() function is essentially the same.)

Optimized down to a simple return!
Optimized down to a simple return!

Caveats

One thing to keep in mind, however, is that it is illegal to specialize a template in a different namespace. This will happen if you define an enum class in a namespace and immediately use the macro still within the namespace:

namespace foo {

enum class Bar {
    ...
}
ENABLE_BITMASK_OPERATORS(Bar)
// error: specialization of ‘template<class Enum> struct is_bitmask_enum’ in different namespace [-fpermissive]

}

One solution to this is to use the macro after the namespace block, referring to the enum class via its namespace:

namespace foo {

enum class Bar {
    ...
}

}

ENABLE_BITMASK_OPERATORS(foo::Bar)
// good to go

I hope this helps you use the type-safe enum class as bitmasks more comfortably!
